Armoury 3D CAD Design

Military Armoury

A military armoury is regularly required to provide storage for diverse equipment: long firearms like ceremonial weapons and sniper rifles such as the Accuracy International L96 – machine guns like the FN Minimi with bipod – plus individual weapons such as SA80 in short version L85 and longer type L86 – alongside small arms including pistols.

To make the task of armoury design even more challenging, guns may have to be stored in racks with accessories such as grenade launchers, scopes, sights and other equipment.

Police Armoury

Police armoury locations are very often tight on space and also have requirements for storage of diverse weapon types and equipment from HK MP5 type guns through to handguns and tasers.
Using 3D drawings

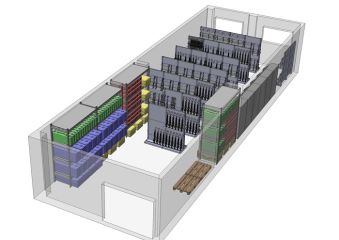

Working with the finished CAD drawings is easy. The image can be rotated to provide all views of the weapons layout within the armoury to enable a truly realistic virtual view – as shown in the example here.
We can adjust the layout of panels and components as required to produce the perfect bespoke solution.

Armoury 3D CAD Design

3D CAD Armoury Weapon Storage Layout Design for Static and Mobile Carriage Systems

Other Products from FWS Europe


Expandable Weapons Rack

Whatever operational requirements may dictate, users can configure their weapons storage to match – seamlessly and efficiently.

Stackable Weapons Rack

Internal layout can be quickly altered to meet police operational requirements and the stacking units themselves can quickly be broken down and repositioned as required.

Weapon Storage Cabinet

Flexible, versatile – instantly reconfigurable secure weapons storage, this Secure Weapons Cabinet is quite simply the most flexible and versatile storage cabinet for weapons ever produced.
